Pinarello Grevil+ Frameset

Pinarello Grevil+ Frameset

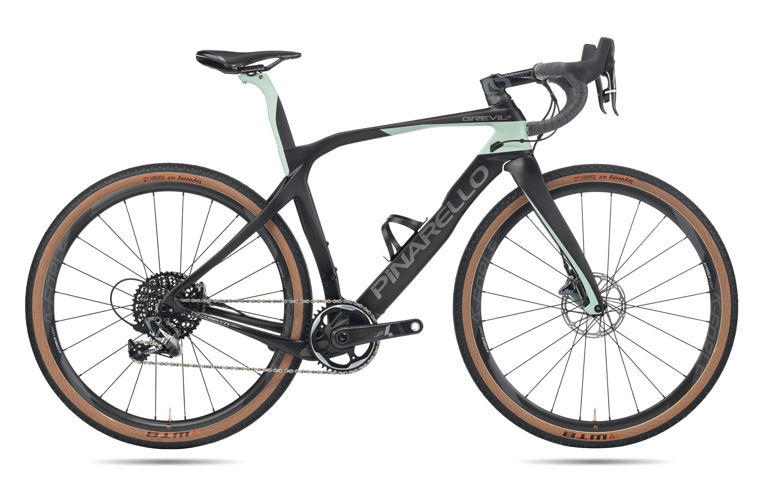

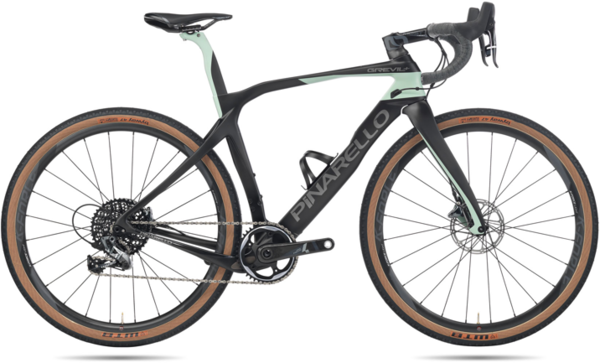

Image differs from actual product. Complete bike shown.
  • Image differs from actual product. Complete bike shown.
  • Image differs from actual product. Complete bike shown.
Please select options
Please call us to find out more about availability and how we can help.


The Pinarello Grevil was born out of the ethos that all roads are rideable...and with speed. Grevil will fascinate you with its design, taking a whole new approach to pure Italian style. Every line, every curve, every shape is considered in the smallest of details. But it doesn't just look good—this bike is a true example of design at the service of functionality. Made to be ridden hard, Grevil is beautiful even if it's dirty. The harder you push, the more satisfaction it provides. Grevil+ uses aerospace-grade Torayca T1100 carbon fiber with Nanoalloy technology for a frame that's lightweight with a great ride feel. The frame utilizes asymmetric shaping at the rear stays in order to fit a larger tire, and an asymmetric fork design to account for braking forces. This makes the bike perfectly balanced and ensures your pedaling will efficiently transfer all your power to the ground. With a max tire size of 700 x 42c or 650b x 2.1-inch, the bike sports a high capability in all kinds of terrain. Disc brakes and 12mm thru axles result in excellent braking power and added stiffness at the hubs for better and more predictable handling, so you stay in control when the going gets rowdy. Internal routing keeps the cables protected, while the Think2 system allows for incredible integration of electronic drivetrain controls. Grevil is made to eat the dust, wherever you want to explore, it


Frame Carbon Torayca T1100 1K Dream Carbon with Nanoalloy Technology, Assymetric, Flexstays, Think2, Internal Cable Routing, Flatback profiles
Fork Onda w/ Fork Flap
Headset 1-1/8–1-1/2"
Axles Front: 12 x 100mm
Rear: 12 x 142mm
Bottom Bracket Italian thread
Wheel Compatibility 700 x 42c or 650b x 2.1"
Brake Compatibility Flat-mount disc

* Subject to change without notice.
